SPECIFICATIONS

Adjustable Temp. Range: 46℉-95℉/8℃-35℃

Applicable Range: 215-269ft²/20-25m²

Brand Name: Sunster

Car Air Heater Type: Heating

Control Method: LCD+Remote Control

Fuel: Diesel

Fuel Consumption: 0.16-0.45 (L/H)

Fuel Type: Diesel

Heater Power: 8KW

Heater Working Temperature: -40℃~+20℃/-40℉~+68℉

Hign-concerned Chemical: None

Item Height: 11.8

Item Length: 14.96

Item Type: Heating & Fans

Item Weight: 10

Item Width: 9.57

Material: PA,Aluminum + Plastic

Model: ALL IN ONE

Oil Pump Working Temperature: -40℃~+20℃/-40℉~+68℉

Operating Voltage Range: 10.5-16/21-32V

Power Consumption: 0.036KW/H

Rated Current: 3A

Special Features: heating

Startup Current: 13A

Supply Voltage: DC12V /DC24V

Switch Type: LCD Switch

Tank Capacity: 5L/1.3 gal

Heater Power:8KW

working voltage : DC12V or DC24V

Startup Current:13A

Rated Current:3A

Tank Capacity: 5L/1.3 gal

Fuel Gasoline:Diesel only

Heating Area:15-20m²

Continuous Heat Supply Hours:48

Power Consumption: 0.036KW/H

Remote Control Range: 30m

Outlet Dia.： 76mm (2m Scalable hot air duct)

Inlet Dia.: 26mm

Heater Working Temperature: -40℃~+50℃

Oil pump Working Temperature: -40℃~+40℃

Fuel Consumption(L/h): 0.16-0.48

With its compact and installation-free design, SUNSTER diesel air heater is designed to accompany you on camping trips, adventures, and various journeys. You can also use it in cars, trucks, ships, excavators, tool rooms, and indoor spaces.

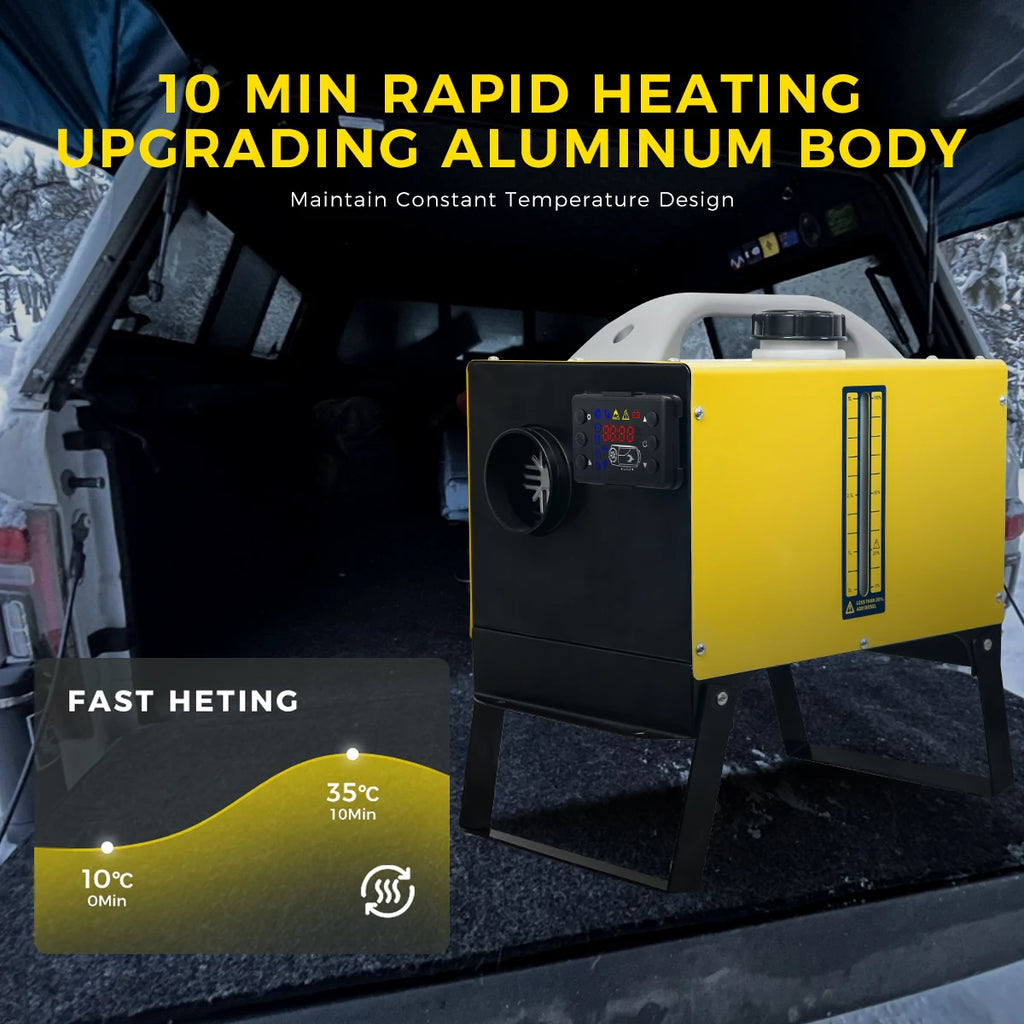

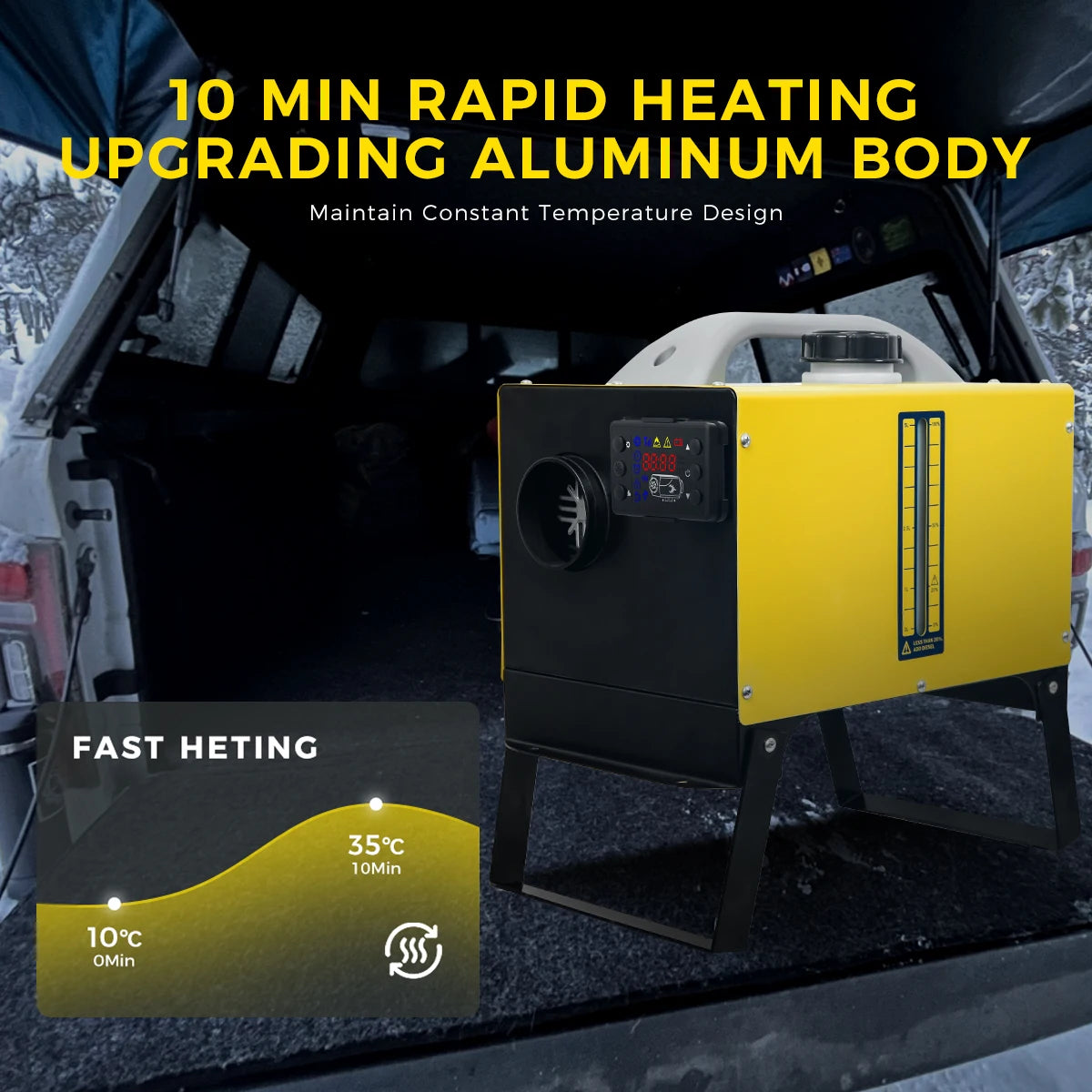

Efficient and fast heating: heater power: 8KW; rated voltage: 12V and 24V, Scope of application: 215-269 square feet/20-25 square meters. Ensure a quick and comfortable temperature within just 10 minutes.

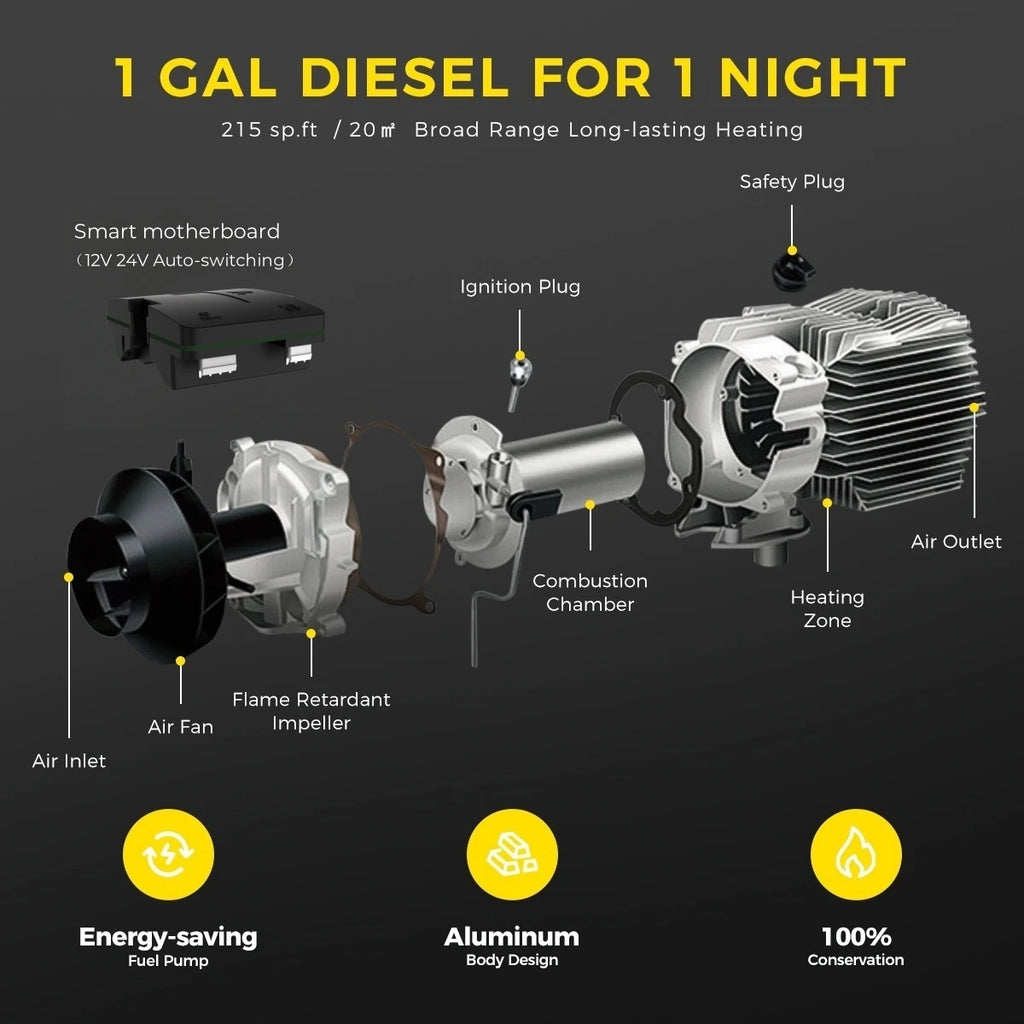

low fuel consumption&Smart fuel saving:Our diesel heater has a power of 8kw with a heating efficiency of ≥90%. It consumes only 1 GAL of diesel per night （with low fuel consumption of 0.16-0.45 (L/H)to keep a large area of 215ft²/20㎡ continuously warm. Besides, the fuel pump's injection frequency and intake air amount are accurately controlled by ECU to extend the service life.

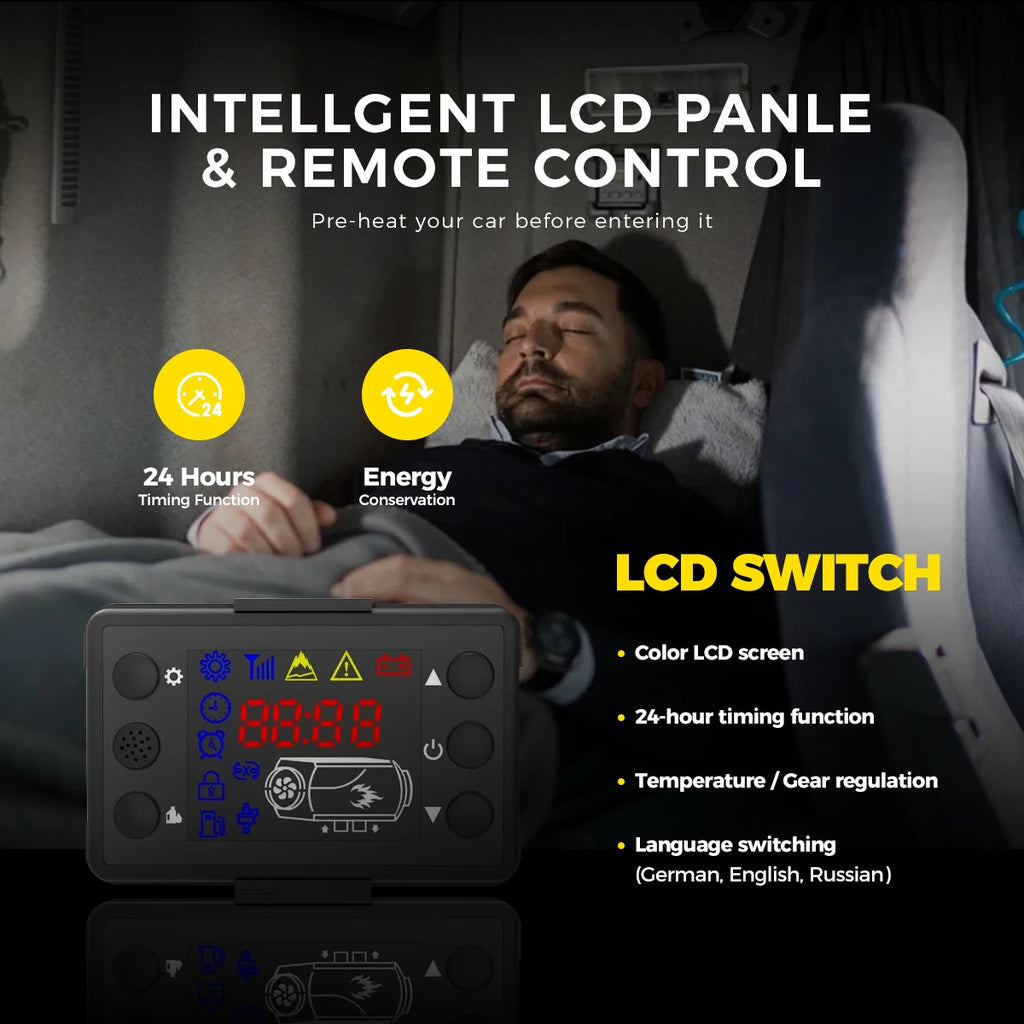

Improved LCD switch display: Automatic pumping mode (saving fuel and reducing carbon buildup);Timing switch function（start and close according to the set time）

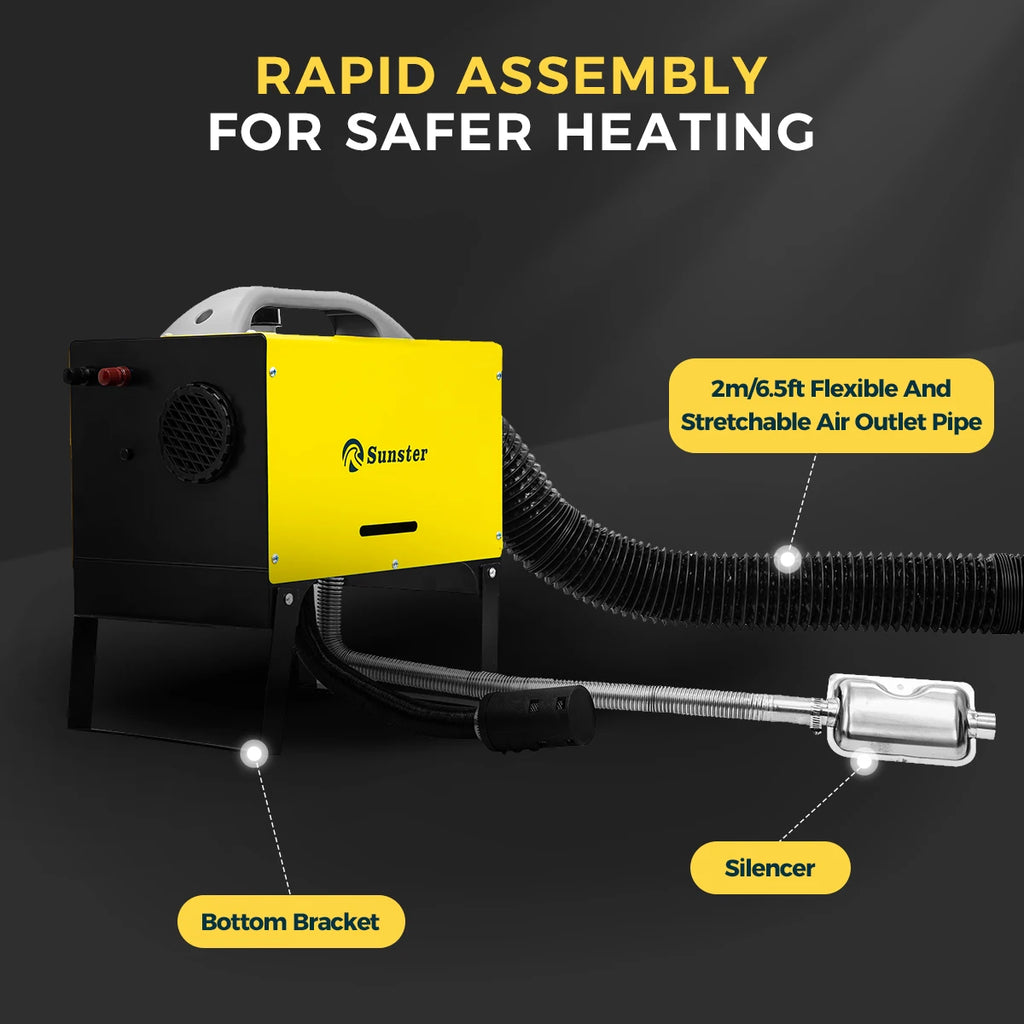

Easy to install: The All in one Diesel Air Heater is easy to install. All the necessary parts are pre-installed, you just connect the air intake and exhaust pipes, and it's ready to use.

Comes with base bracket： Our heater Equipped with a 140mm base bracket，Easier installation and to prevent the common issue of exhaust gas blockages, ensuring uninterrupted warmth.

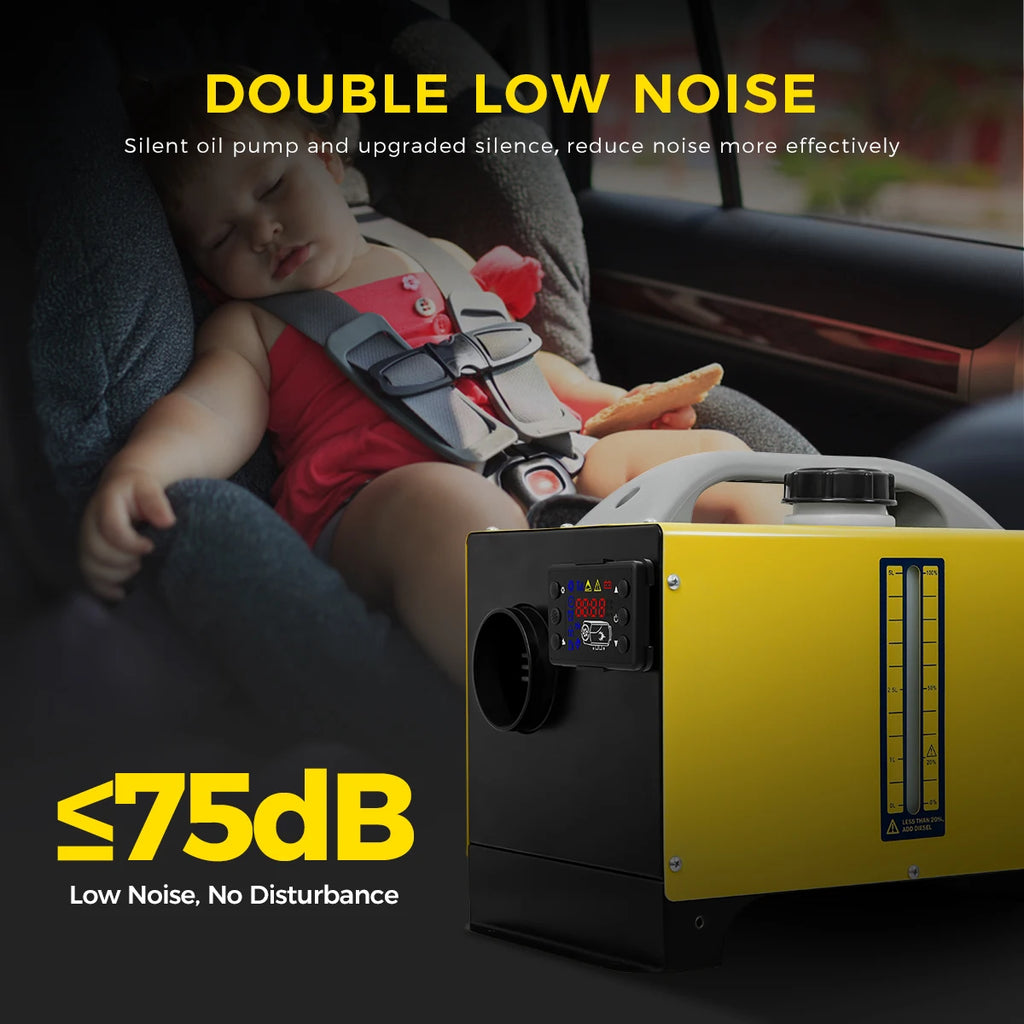

Quiet Operation: This diesel heater is designed with a premium muffler and fuel pump to minimize noise, operating at ≤75dB. Enjoy a warm, uninterrupted sleep during RV stays or outdoor camping, free from the cold.

Multiple Protection: To provide you with a more reassuring product, the product has passed high-standard safety certification, featuring built-in protection against overheating (≥536℉/280℃), short circuit, overcurrent, overvoltage, and reverse connection, ensuring peace of mind during vehicle use, camping, and daily activities. Recommendation: Professional installation is recommended, and the exhaust must be vented externally.

【Comes with base bracket】 Our heater Equipped with a 140mm base bracket，Easier installation and to prevent the common issue of exhaust gas blockages, ensuring uninterrupted warmth.

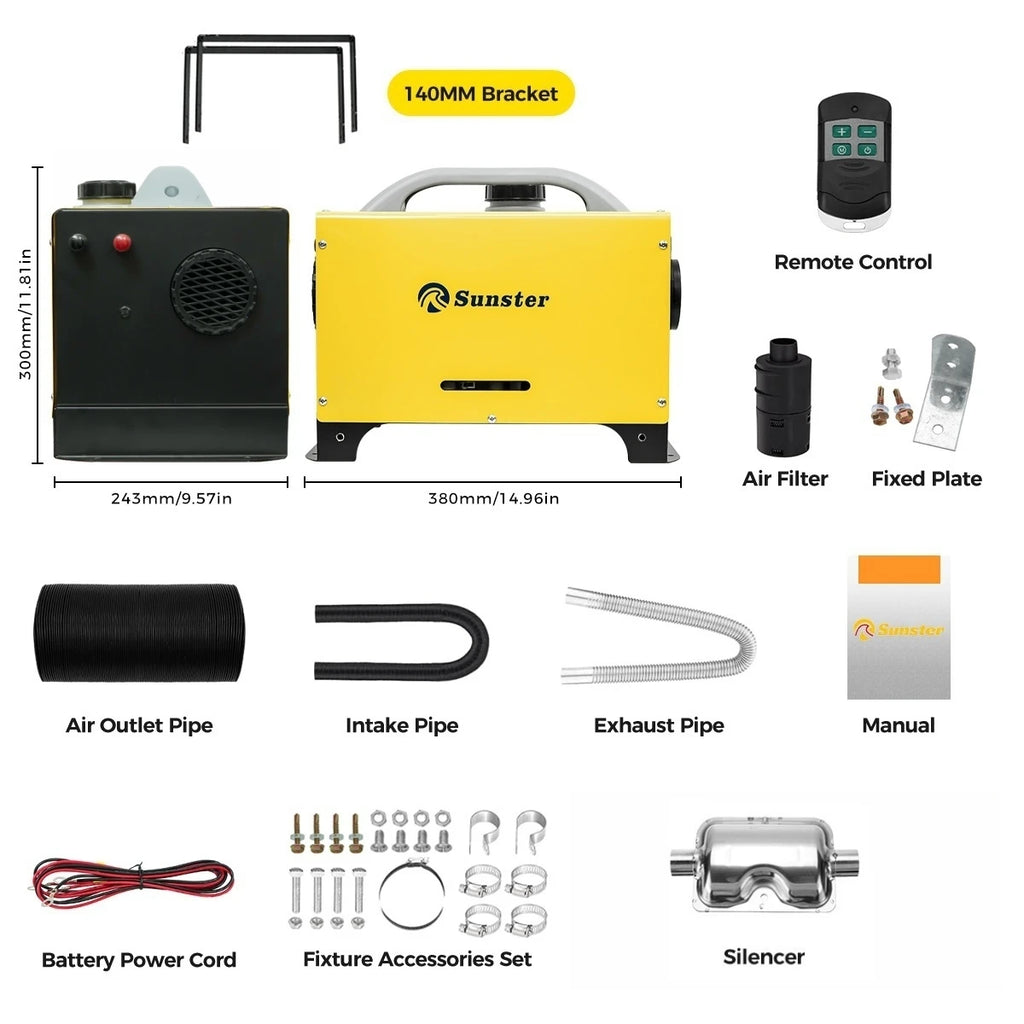

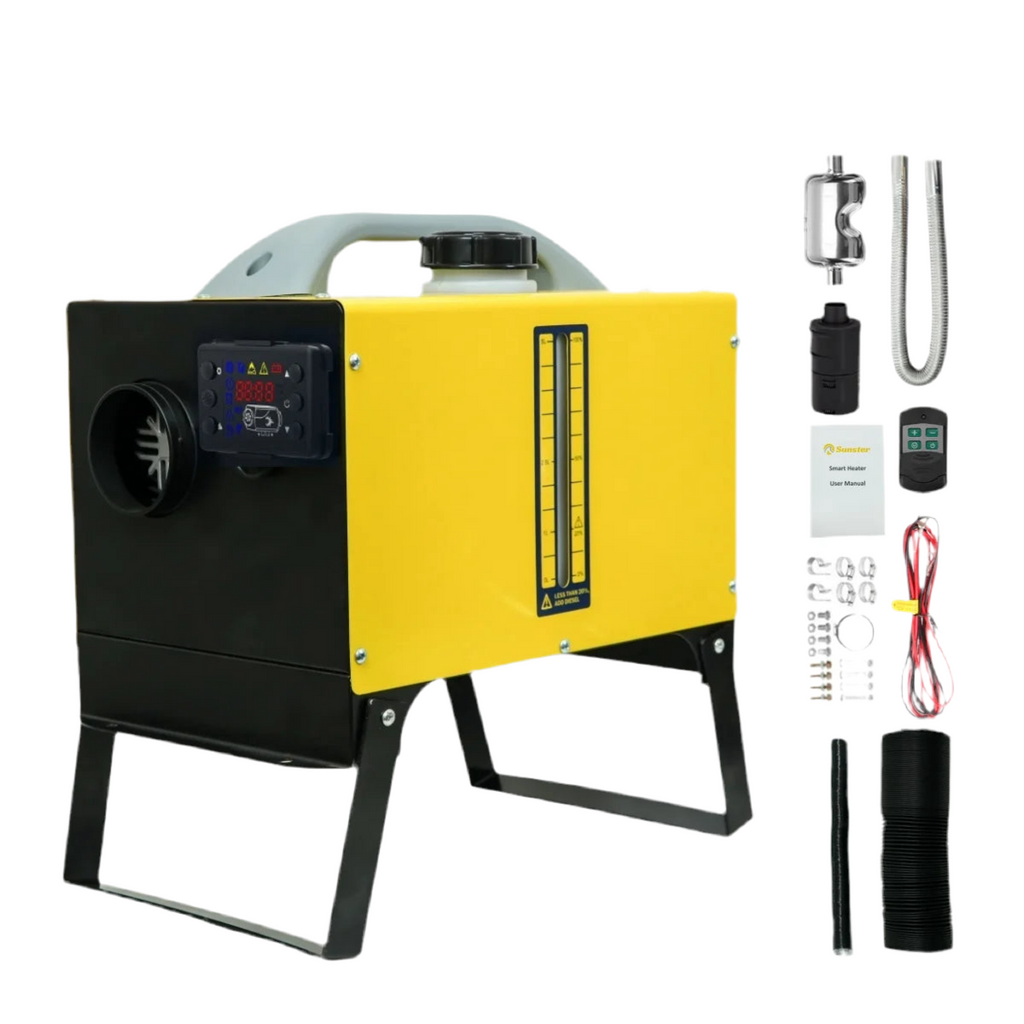

In the package:

1 x All-in-one Diesel Heater (with LCD)/2 x 140MM Bracket/1 x Remote Control/1 x Muffler/1 x Fixed Plate/1 x Air Filter/1 x Inlet Pipe/1 x Exhaust Pipe/1 x Exhaust Pipe/1 x Accessory Kit/1 x Manual

The complete set of accessories makes it easy to install this parking heating in the vehicle. Can be flexibly installed in the passenger compartment, trunk or under the container
